QSFPDD-400G-FR4 module, Duplex LC connector, up to 2km over parallel single-mode fiber. It is compliant to IEEE 802.3bs, 400GBASE-FR4 Spec of 100G Lambda MSA group, and 400GAUI-8/CEI-56G-VSR-PAM4 standards.
The 400 Gigabit Ethernet signal is carried over four CWDM grid optical wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device.
QSFPDD-400G-LR4 is a QSFP-DD Optical transceiver for 4x100Gb/s optical links. It meets the requirements of QSFP-DD MSA, operates from a 3.3V DC power supply and is offered in the commercial temperature range. The module has an aggregate link bandwidth in excess of 4x100Gb/s by multiplexing of 4 CWDM optical lanes, each lane capable of transmitting PAM4 53.125GBd over 10km on SMF optical fiber.
QSFP28-100G-DR compatible optical transceiver module is adopted with duplex LC connectors, reaching a link up to 500m over OS2. It features only one single channel to carry 100GbE/s per lane. The transceiver module is compliant with IEEE 802.3cd, QSFP28 MSA, and 100G Lambda MSA standard.
QSFP28-100G-ZR4 is designed for 80km optical communication applications. This module contains 4-lane EML optical transmitter, 4-lane optical receiver and module management block including 2 wire serial interfaces. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector.
The QSFP28-100G-ER4 is designed for 40km optical communication applications. This module contains 4-lane EML optical transmitter, 4-lane optical receiver and module management block including 2 wire serial interfaces. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector.

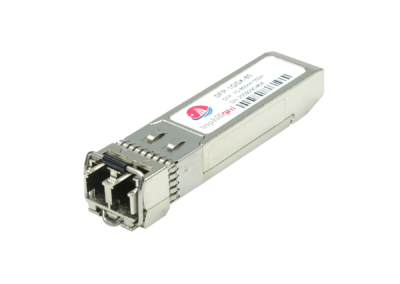

SFP-1G-SX Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). Includes:the LD driver, the limiting amplifier, the digital diagnostic monitor, the 850nm DFB laser and the PIN/TIA.

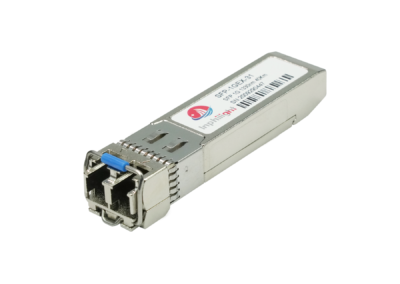

SFP-1G-EX-31 Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). Includes: the LD driver, the limiting amplifier, the digital diagnostic monitor, the 1310nm DFB laser and the PIN/TIA.
SFP-1G-LX Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). Includes: the LD driver, the limiting amplifier, the digital diagnostic monitor, the 1310nm FP laser and the PIN/TIA.

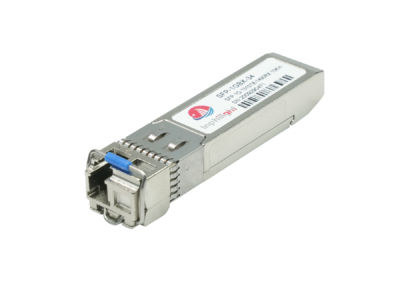

SFP-1G-BX10-U-34 Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). Includes five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the 1310nm FP laser (the 1490nm DFB laser) and the PIN/TIA.

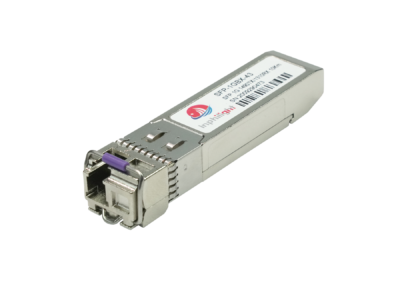

SFP-1G-BX10-D-43 Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). Includes 5 sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the 1310nm FP laser (the 1490nm DFB laser) and the PIN/TIA.
SFP-1G-ZX Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). Includes 5 sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the 1550nm DFB laser and the PIN/TIA.

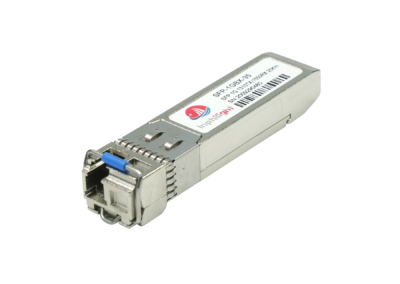

SFP-1G-BX10-U-35 Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). Consists of 5 sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the 1310nm FP laser (the 1550nm DFB laser) and the PIN/TIA.
