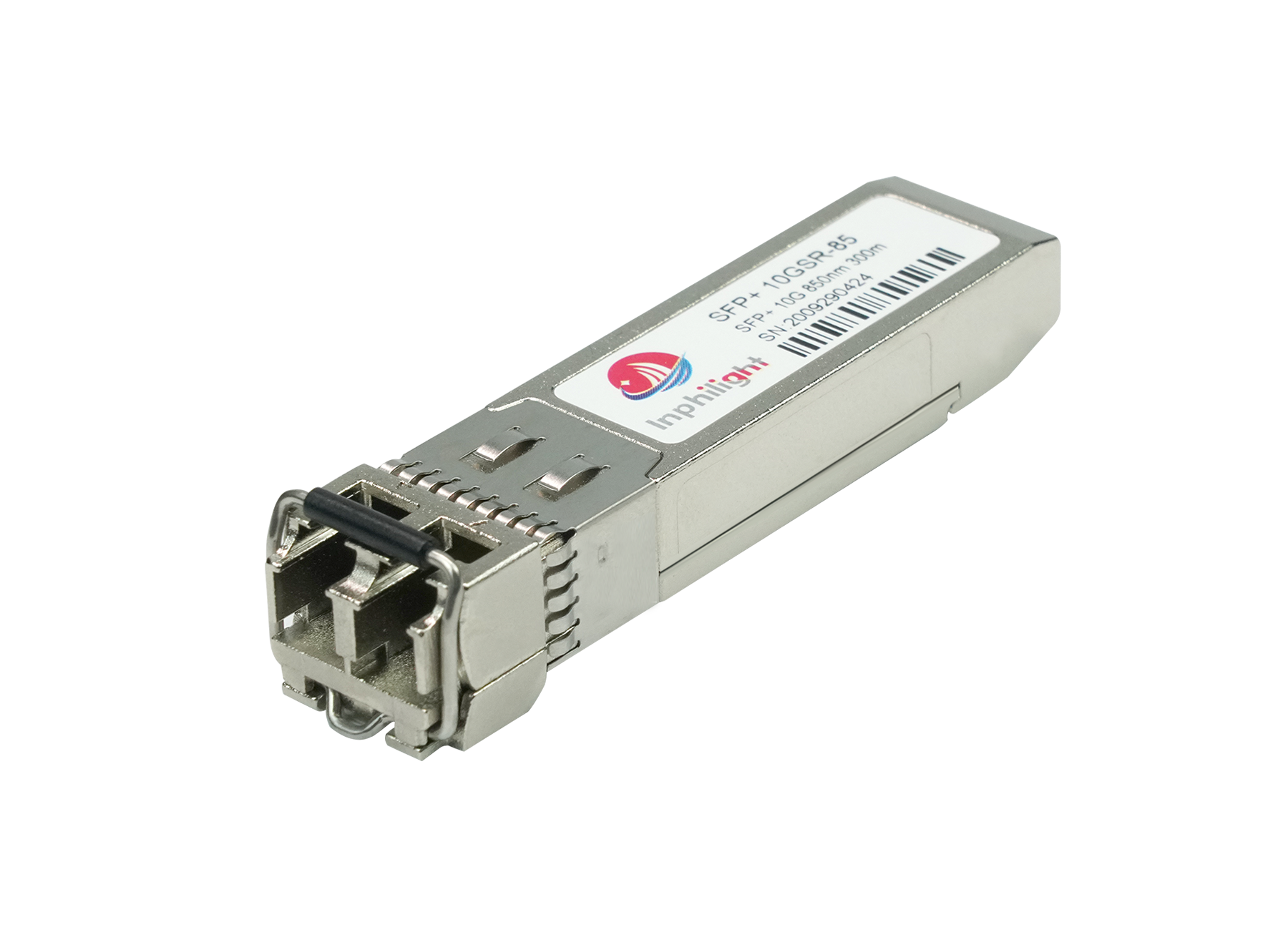

10G SFP+ 850nm 300m Transceiver

10GBASE-SR SFP+ 850nm 300m Transceiver

IP-HFLS30M85C SFP+ transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the 850nm VCSEL laser and the PIN/TIA. The module data link up to 0.3km in 50/125umOM3 multi-mode fiber.

This transceiver meets the SFP+ industry standard package utilizing an integral LC-Duplex optical interface connector. An enhanced Digital Diagnostic Monitoring Interface compliant with SFF-8472 has been incorporated into the transceiver. It allows real time access to the transceiver operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage by reading a built-in memory with I²C interface.


  • Up to 11.3Gbps Data Links
  •  850nm VCSEL laser transmitter and PIN/TIA receiver
  •  Up to 0.3km on 50/125um OM3 MMF
  • Hot-pluggable SFP footprint
  • Duplex LC/UPC type pluggable optical interface
  • Low power dissipation
  • Metal enclosure, for lower EMI
  • RoHS compliant and lead-free
  • Support Digital Diagnostic Monitor interface
  • Single +3.3V power supply
  • Compliant with SFF-8472
  • Case operating temperature:0°C ~70°C or -40°C ~85°C


Compatible model name 10GBASE-SR SFP+ 850nm 300m Module Brand Inphilight
Package type SFP+ Transmission rate 10.3125Gbps
wavelength 850nm The longest transmission distance 300m@OM3/400m@OM4
interface LC duplex Laser type VCSEL 850nm
Fiber type Multimode MMF Data Diagnosis (DOM) Yes
Emitted light power -7.3~-1dBm Receiving sensitivity <-11.1dBm
Commercial temperature 0~70°C (32~158°F) Protocol SFP+ MSA, CPRI, eCPRI


  • 10GBASE-SR/SW 10G Ethernet
  • 1200-Mx-SN-I 10G Fiber Channel

Here to download the full details of 10G SFP+ 850nm 300m Transceiver Module.
