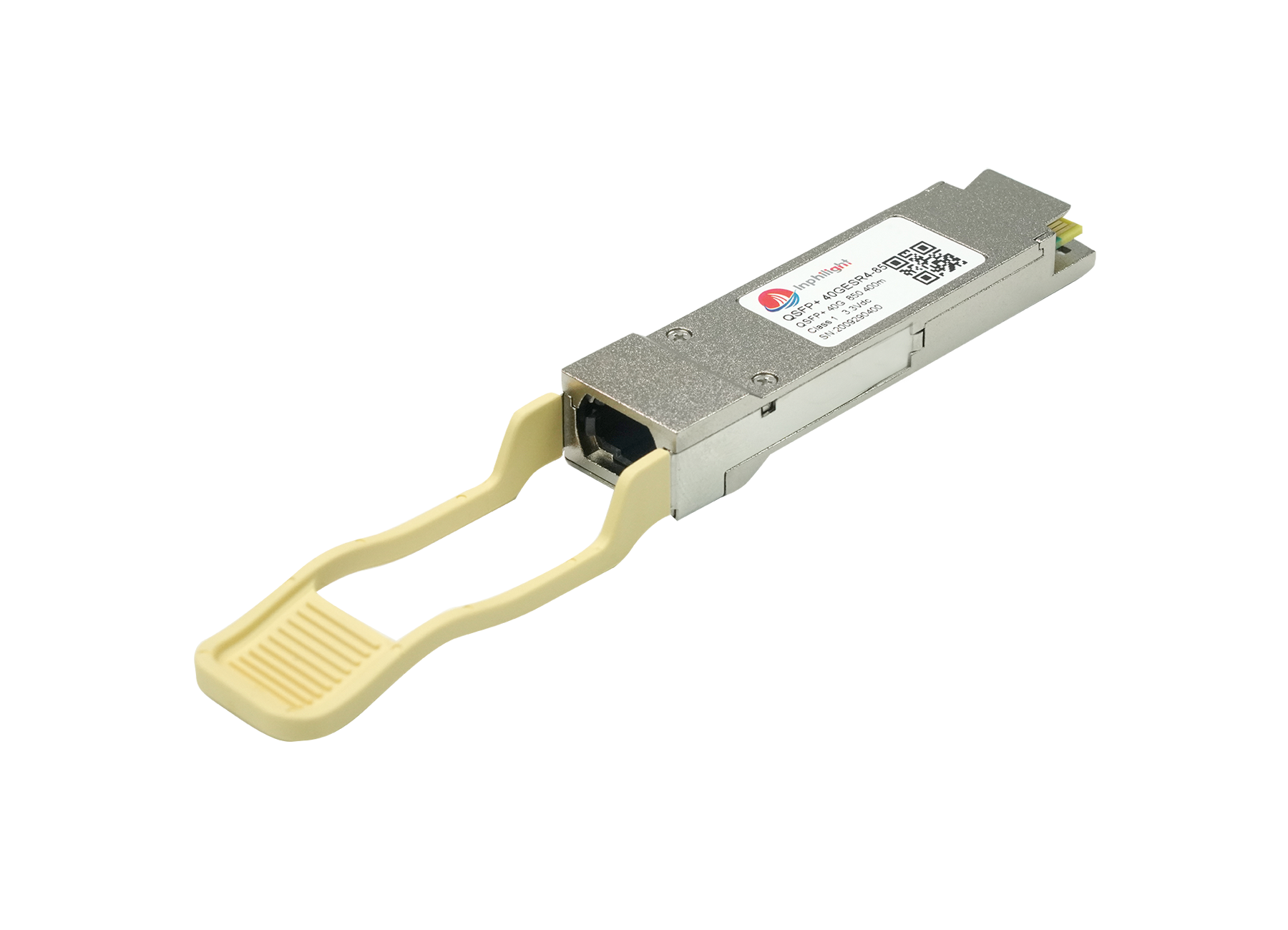

QSFP+ 40G SR4 850nm 150M Transceiver
QSFP-40G-SR4 are designed for use in 40 Gigabit per second links over multimode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4.Module-level digital diagnostic functions are available via an I²C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.
Features
- Reliable VCSEL array technology
- Maximum link length of 300m on OM3
- Hot-pluggable QSFP+ footprint
- Multimode Fiber(MMF) and 400m ON OM4 MMF
- Single 1×12 MPO receptacle
- Maximum power dissipation<1W
- Four-channel full-duplex transceiver module
- RoHS-6 compliant and lead-free
- Support Digital Diagnostic Monitor interface
- Un retimed XLPPI electrical interface
- Commercial operating case temperature range: 0℃ to 70℃
Specifications
| Compatible model name | QSFP+ 40G SR4 850nm 150M | Brand | Inphitech |
| Package type | QSFP+ | Transmission rate | 42Gbps |
| wavelength | 850nm | The longest transmission distance | 150m@OM4 MMF |
| interface | MTP/MPO | Fiber type | Multimode MMF |
| Transmitter type | VCSEL 850nm | Receiver type | PIN |
| Data diagnosis (DDM/DOM) | Yes | Commercial temperature | 0~70°C (32~158°F) |
| Emitted light power | -7.6~1dBm | Receiving sensitivity | <-11.1dBm |
| Power consumption | 1.2W | Extinction Ratio | 3dB |
| Modulation | NRZ | CDR | no |
| Transmission dispersion | 3.5dB | Power budget | 3.5dB |
| Package solution | COB (chip on board) | FEC function | Yes |
| protocol | 40G Ethernet, Infiniband QDR, SATA/SAS3, IEEE 802.3ba, MSA | application | 40G Ethernet, 4*10G Ethernet, data center |
Applications
- 40GBASE-SR4 40G Ethernet
- Breakout to10GBASE-SR Ethernet
- Proprietary interconnections
Here to download the full details of QSFP+ 40G SR4 850nm 150M Optical Transceiver.
