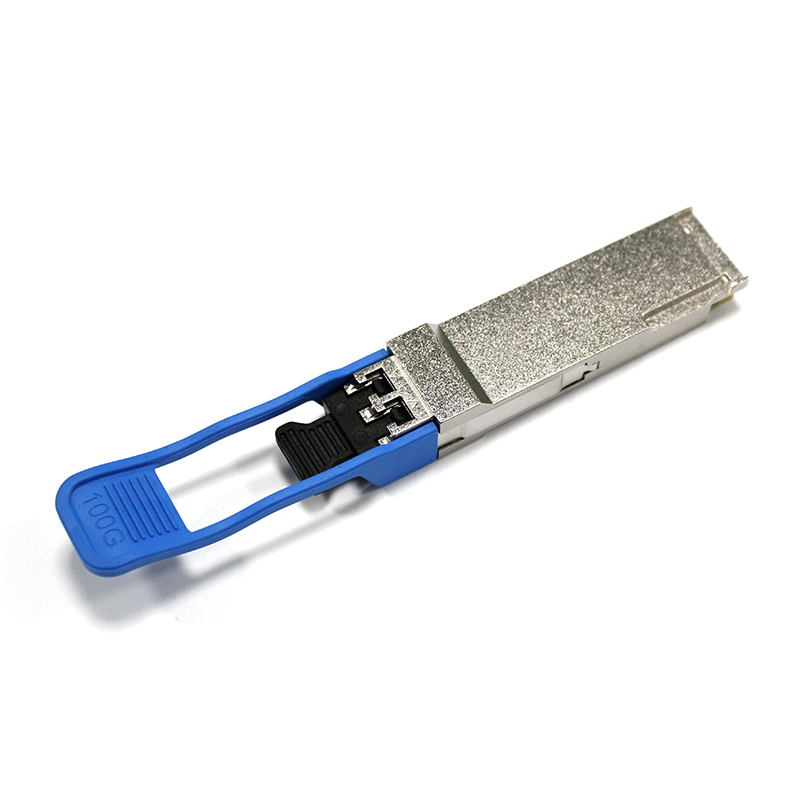

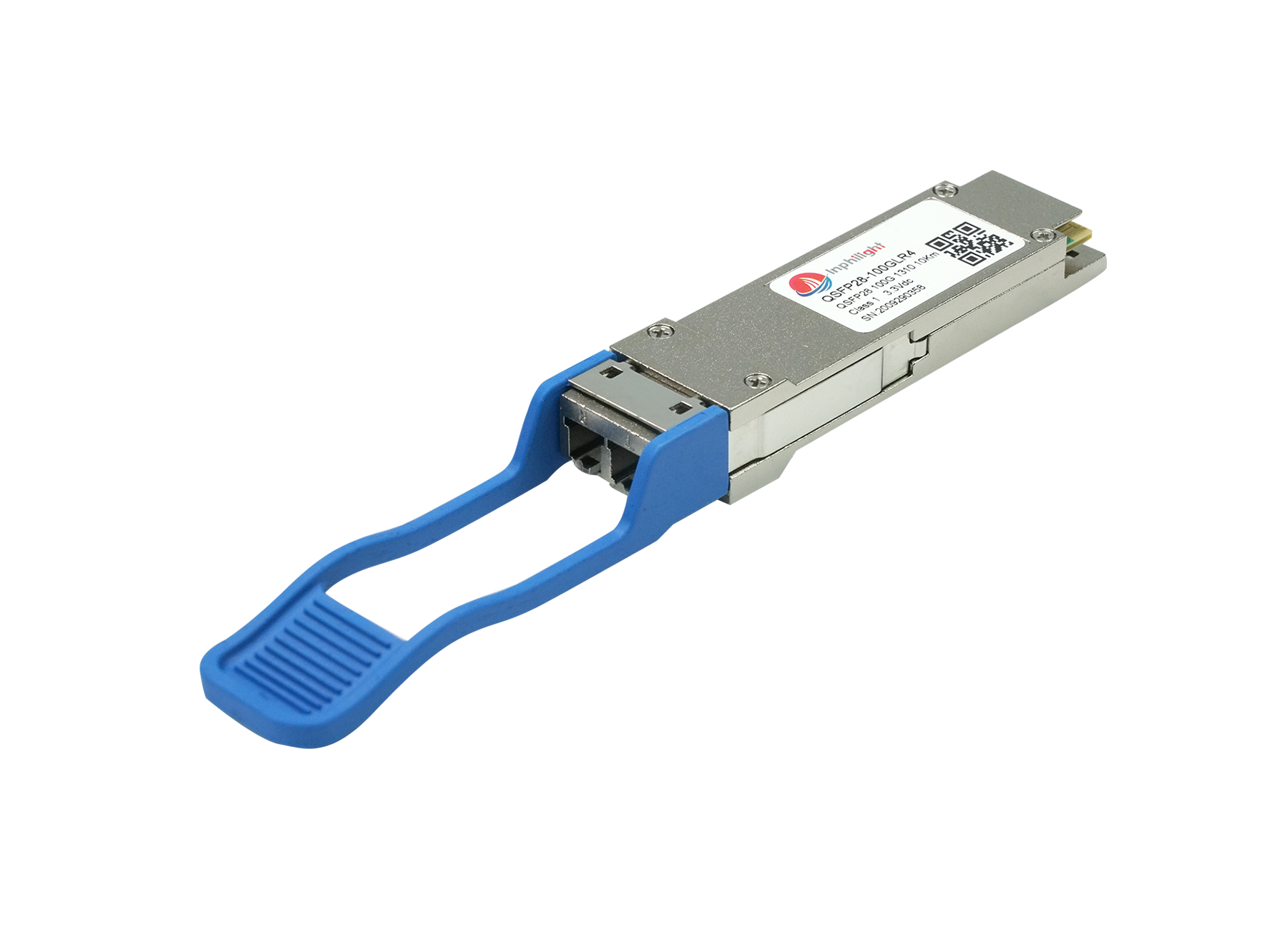

QSFP28 100G LR4 10KM DDM Transceiver

QSFP28 100G LR4 10KM DDM Transceiver

IP-CALK10L31CH are designed for use in 100 Gigabit Ethernet links on up to 10km reach over SMF. The laser drivers control 4- Distributed Feedback Laser (DFB) with center wavelength of 1296nm, 1300nm, 1305nm and 1309 nm. The optical signals are multiplexed to a single –mode fiber through an industry standard LC connector. They are compliant with the QSFP28 MSA and IEEE 802.3bm 100GBASE-LR4 and CAUI-4.  Digital diagnostic functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

Features

  • Supports Hermetic package
  • Supports 103.1Gbps and 112Gbps aggregate bit rate
  • Compliant 4x25Gbps to 4X28Gbps DFB LAN-WDM
  • Transmitter and PIN/TIA receiver
  • Maximum link length of 10km on Single Mode Fiber (SMF)
  • Hot pluggable QSFP28 footprint
  • Duplex LC receptacles
  • Single 3.3V power supply
  • Maximum power dissipation<4W
  • RoHS-6 compliant and lead-free
  • I2C management interface
  • 0°C to +70°C case operating temperature

Specifications

Compatible model name QSFP28 100G LR4 1310nm 10KM Brand Inphilight
Package type QSFP28 Transmission rate 103.125Gbps
wavelength 1310nm The longest transmission distance 10km@SMF
interface LC duplex Fiber type Single mode SMF
Transmitter type 4 x LAN WDM DFB Receiver type PIN
Data diagnosis (DDM/DOM) Yes Commercial temperature 0~70°C (32~158°F)
Emitted light power -4.3~4.5dBm Receiving sensitivity <-8.6dBm
Power consumption 4W Extinction Ratio 4dB
Modulation NRZ CDR Send and receive
Transmission dispersion 2.2dB Power budget 8.5dB
Package solution COB package (chip on board package) FEC function Yes
protocol IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA application 100G Ethernet, data center

Applications

  • 100G Ethernet

Here to download the full details of QSFP28 100G LR4 10KM Optical Transceiver.
