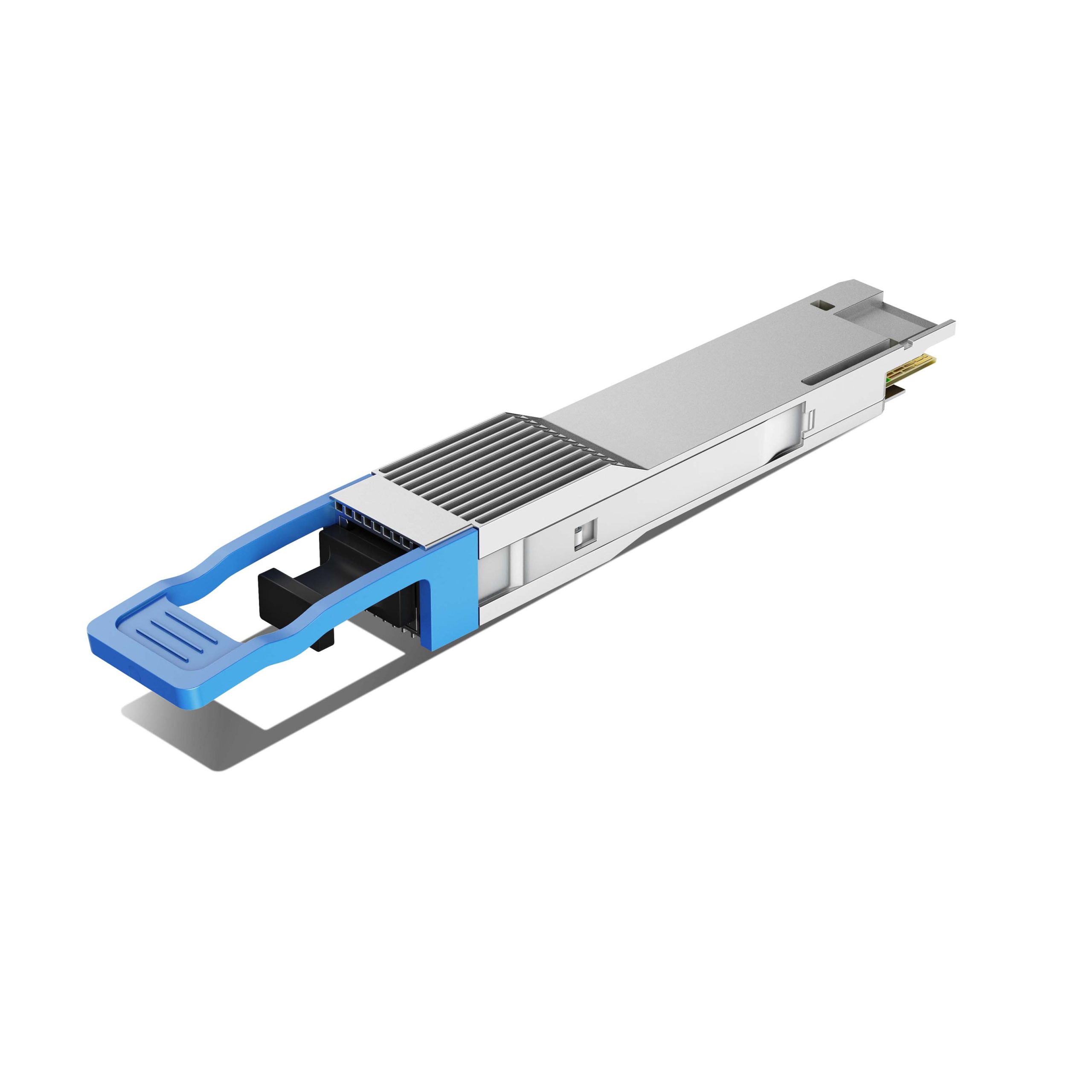

QSFPDD 400G DR4 1310nm 500m Transceiver
This product is a 400Gb/s QSFP-DD optical module designed for 0.5Km optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s.
On the receiver side, the module converts 4 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 400Gb/s into 8 channels of 50Gb/s (PAM4) electrical output data.
Features
- Compliant to QSFP-DD MSA
- Parallel 4 Optical Lanes
- IEEE 802.3bs 400GBASE-DR4 Specification compliant
- Maximum power consumption 9.5W
Specifications
Compatible model name | QSFPDD 400G DR4 1310nm 500M | Brand | Inphitech |
Package type | QSFPDD | Transmission rate | 425Gbps |
wavelength | 1310nm | The longest transmission distance | 500M |
Connector | MTP/MPO-12 | Fiber type | Single mode SMF |
Modulation Format | PAM4 | Receiver type | PIN |
TX Power | -2.9~4.0dBm | RX Power | -5.9~4.0dBm |
Packaging Technology | COB | Temperature Range | 0 to 70°C (32 to 158°F) |
Power consumption | 9.5W | Extinction Ratio | 3.5dB |
DDM/DOM | Yes | FEC function | YES |
protocol | QSFP-DD MSA, IEEE 802.3bs | application | 400G Ethernet, data center |
Applications
- 400G Ethernet
- Data Center Interconnect
- Infiniband Interconnect
- Enterprise Networking
