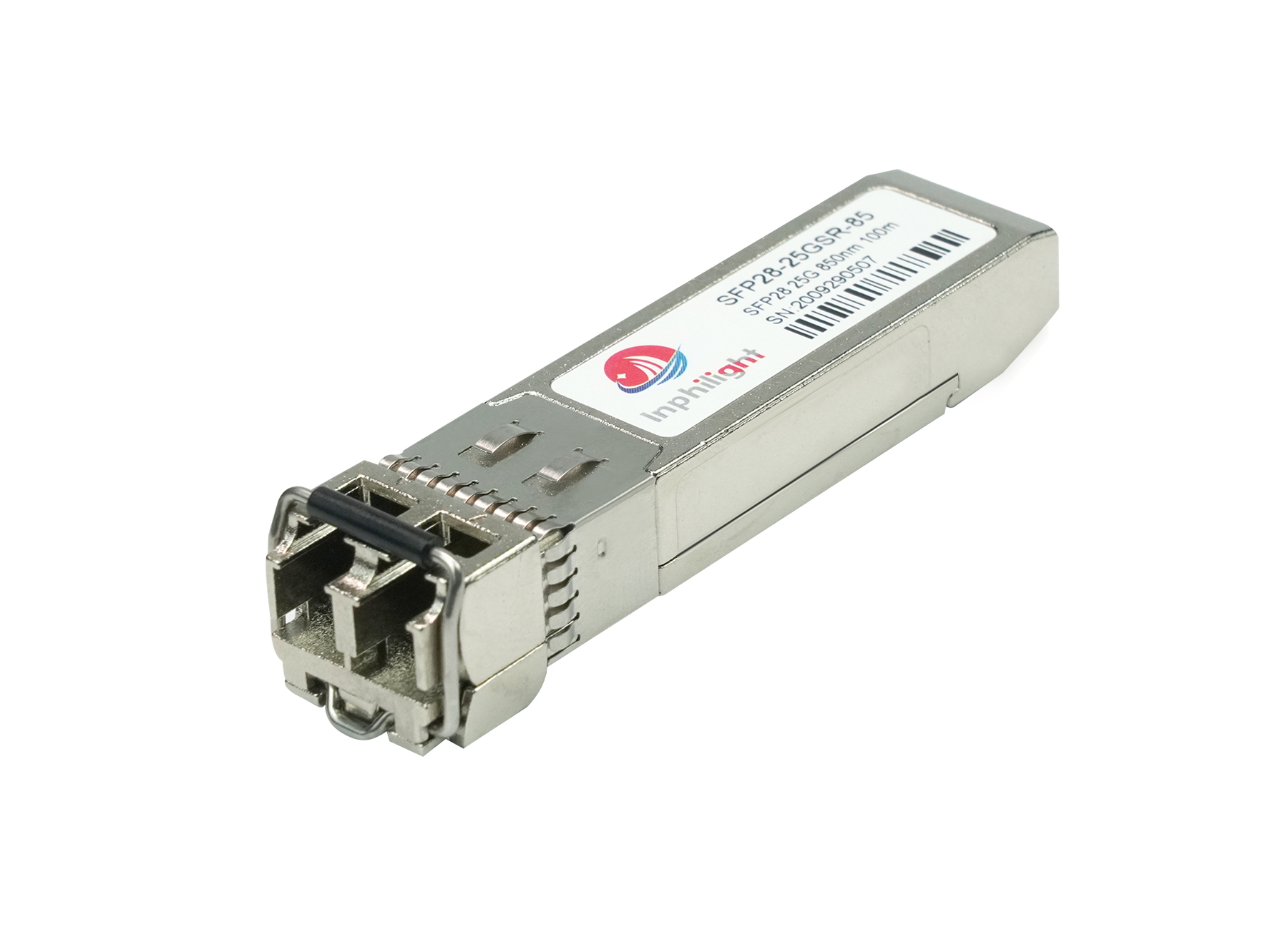

SFP28 25G SR 850nm 100M Transceiver

SFP28 25G SR 850nm 100M Transceiver

SFP28-25G-SR aredesigned for use in 25 Gigabit Ethernet kinks over multimode fiber. They are compliant to SFF-8472 and SFF-8402, and compatible with SFF-8432 and applicableportions of SFF-8431. The product is RoHS compliant and lead-free per Directive 2011/65/EU .

Get free sample

Features

  • Up to 25.7813Gbps Data Links
  • 850nm VCSEL laser transmitter and PIN receiver
  • Maximum link length of 70m on OM3
  • Multimode Fiber (MMF) and 100m ON OM4 MMF
  • Hot-pluggable SFP28 footprint
  • Duplex LC receptacles
  • Low power dissipation
  • RoHS compliant and lead-free
  • Support Digital Diagnostic Monitor interface
  • Single +3.3V power supply
  • 0°C to +70°C case operating temperature

Specifications

Compatible model name QSFP28 25G SR 850nm 100M Brand Inphitech
Package type SFP28 Transmission rate 25.78Gbps
wavelength 850nm The longest transmission distance 100m@OM4/70m@OM3
interface LC duplex Fiber type Multimode MMF
Transmitter type VCSEL Receiver type PIN
Data diagnosis (DDM/DOM) Yes Commercial temperature 0~70°C (32~158°F)
Emitted light power -5~2.4dBm Receiving sensitivity <-10.3dBm
Power budget 5.3dB Receive overload 2.4dBm
Power consumption <1W Extinction Ratio >2dB
Modulation NRZ CDR (clock data recovery) TX&RX built-in CDR
Transmission dispersion 3dB FEC function Support RS-FEC, FC FEC
Package solution COB package (chip on board package) EMC (Electromagnetic Compatibility) stand by
Protocol IEEE 802.3by, SFP28 MSA, SFF-8472, SFF-8432, CPRI, eCPRI MTBF 200,000 hours
Application 25GBASE Ethernet, data center, telecom, 100GE SR4 to 25GE SR Warranty 5 years

Applications

  • 25GBASE-SR Ethernet

Here to download the full details of QSFP28 25G SR 850nm 100M Transceiver Module.
